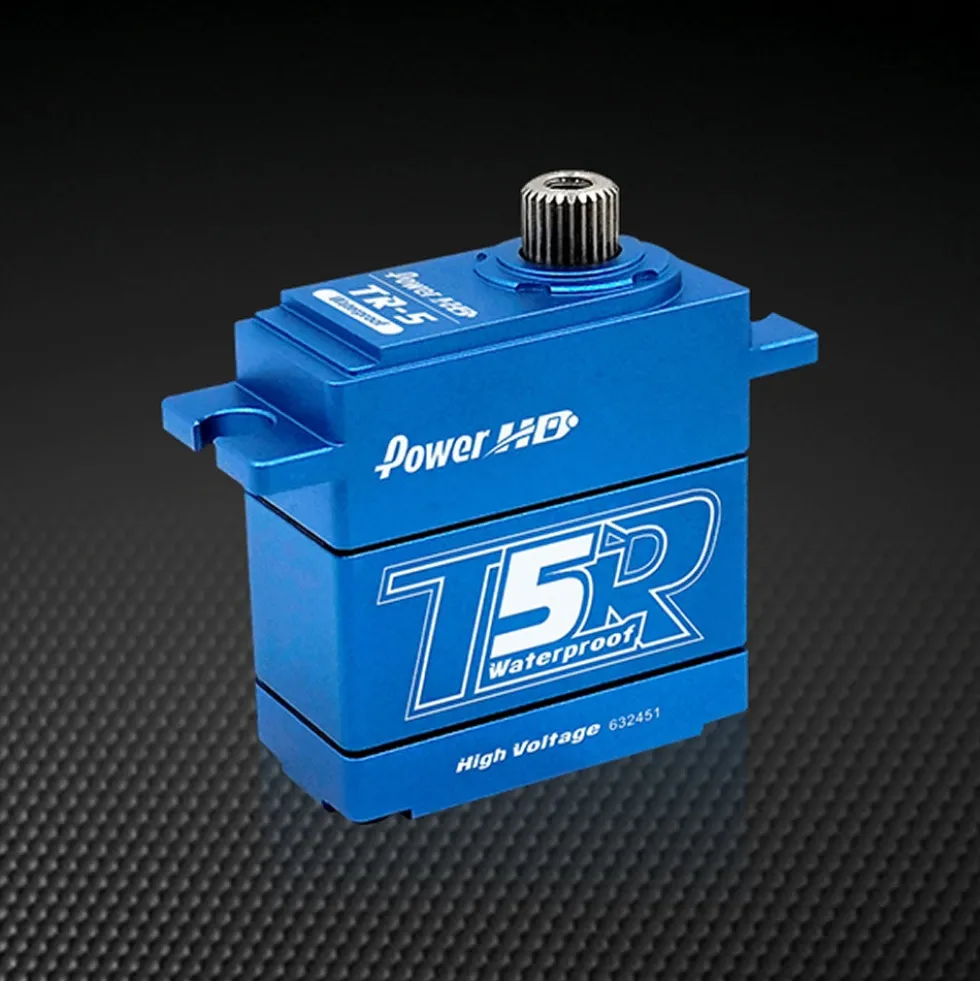

Power HD Digital Mini-Servo TR-5 8kg wasserdicht

Power HD launches brand new all-metal mini high voltage servo TR-5 .
The Power HD waterproof TR-5 mini servo is perfectly compatible with TRAXXAS 1/16 series cars, also apply to small-scale model cars and boats which require waterproof functions.With a 18CM signal wire come out from the servo bottom, the output spline of standard 25T which is compatible with the original TRAXXAS servo horn.Having compatibility with voltage 4.8V-8.4V, at 7.4V input the servo pulls up to 8kg-cm of torque at a speed of 0.07s.

Technical Details:

Torque(4.8V): 3.8 kg-cm ( 52.8 oz/in)

Torque(6.0V): 6.0 kg-cm ( 83.3 oz/in)

Torque(7.4V): 8.0 kg-cm ( 111.1 oz/in)

Torque(8.4V): 8.8 kg-cm ( 122.2 oz/in)

Speed: 0.11 sec (4.8V) ¦ 0.09 sec (6.0V)

Speed: 0.07 sec (7.4V) ¦ 0.06 sec (8.4V)

Operating Voltage:4.8 ~ 8.4 DC Volts

Max Current:7.4V 2.0A

Gear Type:Metal

Spline:25T

Weight: 35.0 g (1.23 oz)

Size:29.5 x 14.0 x 31.4 mm ( 1.16 x 0.55 x 1.24 in)

Produkteigenschaft	Wert

Versandgewicht: 0,07 kg
